Project: 'Rick Rangerous'

Introduction

I started this project as an introduction into the basic functions of the NetYaroze. Since I wanted to begin with the 2D functions, I chose to write a 2D platform jump-and-run game. It is not a new concept in any aspect, I just tried to implement some of the elements that I know from other games I played. All of the code was written during a three week holiday in winter 1998.

The game doesn't feature any spectacular graphics or sounds, and the gameplay is far from complete. I tried to build a few levels that demonstrate all the technical elements. But I learned that level design itself is an art like creating graphics and sounds, which I lack special talent for.

It was not my intention to win a contest with an original new concept or a complete implementation of an existing one with nearly professional artwork. What I tried was to apply the same design methods I use when writing business applications, and create a class hierarchy that is easy to understand, expand and maintain. So I encourage you to download the executable and see what it does, but what actually interests me most is your comments on the source code.

Screenshots

Here are some screenshots of the game:

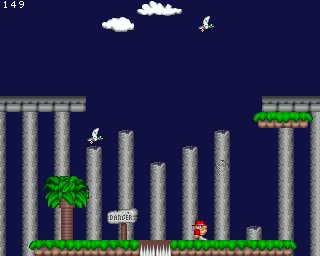

Screenshot Title Screenshot Level 1

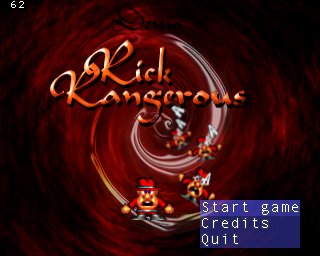

Title screen Scene from a level

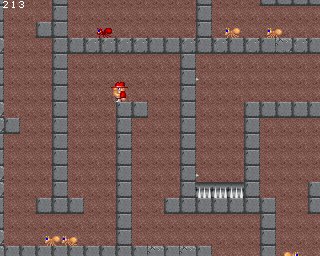

Screenshot Level 2 Screenshot Exit

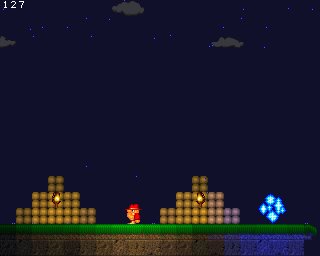

Scene from another level Exit visible

Download

There are two different versions of the executable available for download: one for NetYaroze (for Metrowerk's PSComUtil, SIOCONS is not yet supported) and one for ActionReplay.

Download the archive and unpack it to an empty directory. You will need an unzipper that can handle long file names. Available for instance from WinZip.com. The executable archives contain all files needed to run the game, including a batch file for downloading the files to the PlayStation.

Note that the game runs only in PAL with 320x256 screen resolution.

Description Size File
Executable for NetYaroze 154'503 RickNY.zip
Executable for ActionReplay * 159'511 RickAR.zip
Source code 32'460 RickSource.zip
Map editor 289'912 RickMapEdit.zip
CodeWarrior download tool 298'465 PSComUtil.zip

*) You will need to copy the file LIBPS.EXE from your NetYaroze boot disc to the unpacked directory, as this file is needed during run-time. It will be downloaded by the batch file.

Please let me know if you should have problems downloading or extracting the archive files.

Gameplay

The game starts with a title screen and a menu, from which you can choose to start the game, see the credits or quit the program.

At the beginning of each level, the hero is dropped to the start position. Your goal is to find and enter the exit (a flashing blue cloud). You can control the hero using the directional buttons, jump with the X-button and shoot with the S-button. If you fall off the bottom or touch an enemy or a lethal object, you die and are transported back to the start position.

Levels

The definition of a level is stored in a binary data file. The game uses two such files as consecutive levels. There are six small levels included in the executable archives. You can change the download batches to use different levels. Using the map editor archive, you can even create your own levels. The tools aren't very sophisticated, though. I mainly included them (especially the source code of the converter) as documentation.

Source code

The whole program is written in C++ because one of my main goals was to find a suitable object-oriented class design. The source code archive contains a CodeWarrior project file, which should allow you to compile the program yourself. If you have never used C++ with CodeWarrior before, you might need to change some of the compiler files and settings. Since no proprietary CodeWarrior functions are used, the program could also be translated using the GNU compiler. See the newsgroups and other member's homepages for further information regarding the setup.

The source code consists of the following modules:

Main

Initializes the environment and processes all events in the main loop. Creates a handler instance and calls the handler to process events and draw the screen.

Handler

Manages the mode of the program (title, levels, credits), the text window, the hero and the levels.

Level

Controls the two background layers and all objects (enemies, bullets, lights) in one level.

Layer

Contains the tiles, responsible for scrolling and collision detection. There are two layers in a level. The objects interact only with the foreground layer (floor, walls). The background layer is scrolled slower than the foreground to create the impression of depth.

Sprite

Contains the low-level sprite structure. A sprite is responsible for its own movement, draws itself and handles collisions with other sprites. There are several classes derived from the sprite: the tile, the hero and the enemy.

Tile

A tile is a fixed-size sprite used as background by the layer. Some tiles are solid (the objects can't walk through them), and some are deadly.

Hero

The hero is controlled by the player using the pad. He can run, jump, fire bullets, die, etc.

Enemy

Enemies are sprites which have the ability to act by themselves. They know the position of the hero and can move according to different patterns. Some of them can even shoot their own bullets.

Light

Lights can either be static objects in a level (flickering torches in a background layer) or moving together with another object (when the hero carries a torch). A light illuminates all objects according to their distance to the light source. Some lights (like torches) may flicker or change their color.

Weather

There are different types of weather which a level can use. A simple sunshine with a blue sky, a dark underground environment or a storm with raindrops controlled by changing wind.

Font

A semi-transparent message window can be used to display text on multiple lines. A fixed-pitch bitmap font is used to create a sprite for each character.

Sound

This class provides functions to play sounds. There are sounds played when the hero jumps, fires his gun, or when a bullet hits a target.

Legal issues

All graphics in this game are taken from the archive SpriteLib copyrighted by Ari Feldman. The title image is composed by a friend of mine, and I have his permission to distribute it. All sounds are taken from various archives on the internet (which means someone else might have the copyrights).

The source code was written by me alone. You may freely distribute both executable and source code. Feel free to use any of my code for your own non-commercial purposes. Sony is hereby granted the right to do with it whatever they like.
